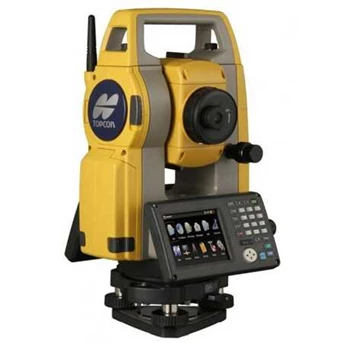

Topcon OS-102 Total Station 2-Second Reflectorless

Total Station Topcon OS-102 2-Second Reflectorless With MAGNET Field software on board the Topcon OS-102 Total Station with 2-second accuracy, survey professionals can perform all calculations onsite without the need for a data collector. This alphanumeric and touchscreen optical instrument has a highly-accurate EDM and trigger key that enables the recording of measurements with just a press of a button. It also features an advanced angle encoder system and exclusive long-range Bluetooth technology for everyday surveying in remote locations.

Features Topcon OS 102 2 Second Reflectorless Total Station
• Measures up to 1, 640' when reflectorless
• Measures up to 16, 400' when working with a prism
• MAGNET Field software
• Accuracy of 2 seconds
• Red laser pointer
• Laser plummet
• Battery life up to 20 hours
• Color LCD display
• Keypad
• Serial and USB ports

Specifications Topcon OS 102 2 Second Reflectorless Total Station

General
• Weight: 12.3 lbs ( 5.6 kg)
• Dimensions: 7.5 in x 7.5 in x 13.7 in ( 19.1 cm x 19 cm x 34.8 cm)
• Warranty: 1-year
• Protection Class: IP65 ( protected against dust and water jets)
• Tripod Thread: 5/ 8 - 11
• Internal Memory: 750 MB
• Software: MAGNET Field
• Guide Light: Green and red LED; Operating time: 1.3 to 150 m ( 4.3 to 490 ft)

Angle Measurement
• Measuring Method/ Reading System: Independent Angle Calibration System ( IACS)
• Minimum Reading: 0.5-second/ 1-second
• Accuracy: 2-second Distance Measurement
• Unit of Measure ( distance display) : m/ ft
• EDM Accuracy ( Precision) : ± ( 2mm + 2ppm x D) for prism; ± ( 3mm + 2ppm x D) for no prism
• Minimum Reading: 500 m ( 1, 640 ft)

Tilt Sensor/ Compensator
• Range: ± 6
• Type: Liquid
• Method: Electronic

Automatic Battery/ Power
• Power Source: Rechargeable Li-ion battery
• Battery Life: 20 hours
• Battery Life Alert: yes

Telescope
• Length of Tube: 6.7 in ( 17.1 cm)
• Image: Erect
• Diameter of Objective Lens ( Aperture) : 1.9 in ( 48mm) EDM
• Magnification: 30x
• Field of View: 1 degree 30 arcmin
• Resolving Power: 2.5 arcsec
• Minimum Focus Distance: 1.3 m ( 4.3 ft)
• Reticle Illumination: 5 brightness levels
• Reflectorless: yes

Display and Keypad
• Type: Semi-transmissive

TFT QVGA color LCD
• Sides: Dual
• Keys: Alphanumeric
• Touchscreen: yes
• Backlight: yes

Temperature
• Operating: -4Fº ~ 140º F ( -20º C~ 60º C)

Applications
• Surveying and Construction: yes
• Mapping and GIS ( geographic information systems) : yes
• Utilities: yes
• Environment Studies: yes
• Geomarking: yes
• Archaeology: yes
• Accident Reconstruction: yes

Measurement Range ( under fair weather conditions)
• Single Prism: 5, 000 m ( 16, 400 ft)
• Triple Prism: 6, 000 m ( 19, 680 ft)
• No Prism: 500 m ( 1, 640 ft)
• Mini Prism: 500 m ( 1, 640 ft)
• Reflector Sheet: 500 m ( 1, 640 ft)

Functions
• Coordinate Measurement Point: yes
• Angle and Distance Stake Out: yes
• Stake Out Line: yes
• Offsets: yes
• Missing Line: yes
• Remote Elevation: yes
• Resection: yes
• Area Calculation: yes

Measurement Time
• Fine: 0.9-second
• Rapid: 0.7-second
• Tracking: 0.3-second

Laser Plummet
• Accuracy: ± 1.0 mm/ 1.3 m
• Class: 2
• Wavelength: 635 nm

Interface
• Bluetooth: Class 1 LongLink technology
• USB: Type A and mini B
• Pin Port: RS-232C
• Operating System: Windows CE6.0
