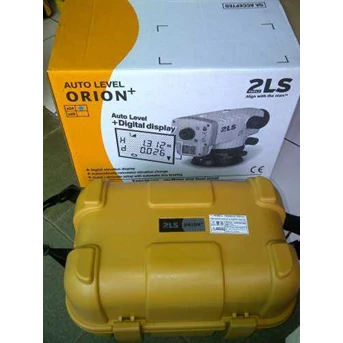

Automatic Level Digital ORION 2LS
Topcon' s ORION is perfect for any leveling or elevation job. Using technology typically found on high-precision surveying instruments, its easy " point-and-shoot" electronic design eliminates guesswork and potential errors. By reading the bar code on an elevation rod, ORION+ never makes a mistake. High accuracy height and distance measurements are displayed on its large, high contrast led panel. Human error is eliminated, improving both productivity and quality on every job.
Specifications:
• Accuracy ( height) : ± 2.0mm at 30m
• Accuracy ( distance) : ± 10mm @ 10m
• Working range ( Tape staff) : 0.9 to 30m ( 2.9 to 98ft)
• Working Range ( Aluminum Staff) : 2.0 to 50m ( 6.5 to 164ft)
• Measuring time : < 2sec
• Magnification : 20X
• Self-compensation range : ± 12°
Telescope:
• Length : 206mm
• Magnification : 20X
• Objective aperture : 30mm ( 1.18in.)
• Resolving power : 4.5"
• Field of view : 1° 20'
• Minimum focus : 0.9m ( 2.9ft)
• Image : Erect
• Stadia ratio : 1: 100
• Stadia constant : 100
Compensator
• Type : Pendulum compensator with magnetic damping system
• Working range : ± 12'
Height Measurement
Accuracy:
• Electronic reading : ± 2.0mm at 30m
• Optical reading : ± 2.0mm at 30m
Measuring range:
• Tape staff BCX : 0.9 to 30m ( 2.9 to 98ft)
• Aluminum staff BAS : 2.0 to 50m ( 6.5 to 164ft)
• Measuring time : < 2sec
• Least count : 0.001m, 0.01ft
• Minimum light for measurement : 20lx. @ staff surface
Distance Measurement
Accuracy:
• Aluminum staff BAS :
• D< = 10m : ± 10mm
• 10m< D< = 50m : ± 0.25% x D
• Least count : 0.01m, 0.1ft
User Interface:
• Display : 7 segment and character LCD with backlight
• Keyboard : 6 keys ( 5 on front panel, 1 on side)
• Circular level sensitivity : 8' / 2mm
Measurement Program
• Measurement Program : Single/ Continuous/ Elevation/ Height difference
Environmental
• Water and dust resistance : IP55 Category2
• Operating temperature : -20 to + 50
Others
• Power supply : AA dry cells x 2
• Operating time : 120hrs = 50, 000 points ( at + 20 , point every 5 sec)
• Weight : 1.8kg ( include batteries)
• Size : 206 x 123 x 137mm
Complete with:
• Alumunium tripod
• Rambu ukur ( Barcode)
