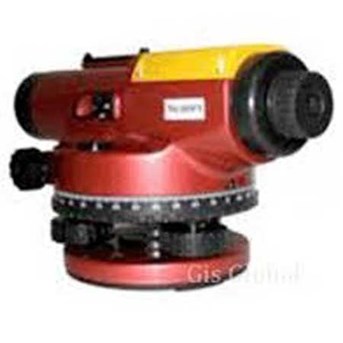

Automatic Level Mysurv NAL 324

MySurv NAL 324 The NAL 300 Series Automatic Level is designed and built to provide performance with simplicity, whatever the application for engineering and constuction projects and the installation of large machines. Spesifications : Standart deviation per 1km double run + 2.5mm TELESCOPE • Image Erect • Magnification 24x • Shortest focusing distance 3.2m • Multiplication constant 100 • Additive constant 0 • Free diameter of objective 30mm COMPENSATOR • Working range > + 15' • Setting accuracy ( standart deviation) < 0.5 " • Circular bubble 8' / 2mm HORIZONTAL CIRCLE • Graduation 360o or 400 gon • Interval 1o or 1 gon • Adoption ( Base Plate) Flat or Dome • Central fixing screw W 5/ 8 " ( 55o) OTHER • Storage temperature -40oC to + 75oC • Operating temperature -30oC to + 50oC • Water and dust resistance IP55 • Weight without container 1.5 kg Complete with : • Aluminium tripod • Leveling staff 3m
